YL-140B Base Plate Car Hoist 4.5 Ton Suitable For Thinner Concrete

All Our Car Hoists Come With 3 Year warranty



This Hoist Is Suitable For Sheds & Workshops With Concrete Thickness Less Than 150mm, It Has Full Support Plate underneath hoist hoist to allow for more distribution of weight.

This 2 Post Hoist Is Also Suitable For Workshops & Sheds With a Low Ceiling Height

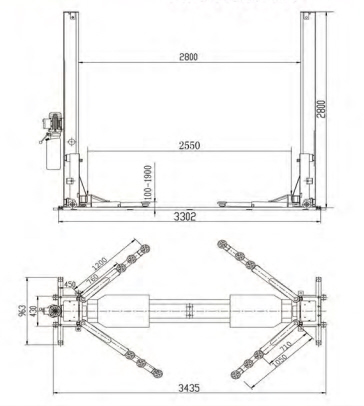

Specifications

• Capacity                        4500kg
• Lifting Height              1800mm
• Lifting Time                 55s
• Overall Width              3435mm
• inside column width  2800mm
• Voltage                          240v
• Motor Power                2200w
• Hydraulic fluid required for hoist is standard AW32 grade

Base Plate Hoist Features

• 4500kg/ 4.5 ton safe load limit
• Heavy Duty Bottom Plate To Allow for Thinner Concrete
• Lifting height of 1.9m (plus screw pad adjustment and raising adapters)
• Dual hydraulic cylinders with chain driven carriages
• Adjustable screw pads and 4 lifting adapters are included
• Single piece columns
• Powder coated finish
• Symmetric  arms
• Low profile 50mm high base plate

Safety Features

• Manual safety locking system with safety latches in each column
• Single point release system
• Heavy duty 6mm thick columns & carriages
• 10mm steel wire rope equalising cables
• Anti-surge valve in the hydraulic power unit
• Sub-frame design provides additional safety

What’s Included?

• 2 post hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit
• Concrete anchor bolts
• Detailed installation instructions
• Power Lead Connected

What’s Not Included?

• Hydraulic oil

Warranty & Certifications

• 3 year Australian warranty* includes structure, hydraulics & electrics
• Australian WorkSafe registered design
• CE certification

Packaging

• 3450mm x 980mm x 100mm  –  96kg
• 2830mm x 450mm x 700mm  – 700kg
• 760mm x 260mm x 340mm  –  21kg

CLICK ON PICTURE ABOVE FOR USER MANUAL
