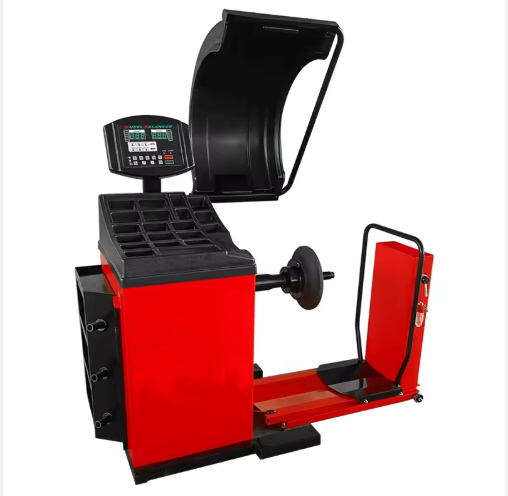

Truck, Bus and Car Wheel Balancer With Air Assist Lift – DS-90E1

Suitable For Balancing Both Truck & Car Wheels

Application range:

The DS-90E1 is suitable for truck, bus and car wheel balancing with a rim diameter of 13 to 24″

Machine functions:

1. Suitable for both automatic dynamic balancing & static balancing, both steel & aluminium alloy rim balance.
2. Adopting high precision ±10g
3. Comes with foot brake to save time.
4. Comes air operated wheel lift assist.

Technical parameters

• Rim diameter:                    13″-24″
• Rim Width:                          1.5″ – 20″
• Max. tire weight:                150kg
• Max. tire diameter:            50″   (1300mm)
• Tire width:                           1.5″-20″
• Spindle speed:                    200r/min
• Balance precision:             ±10g
• Power Required-                Comes Standard 240v single phase 10amp plug (3 Phase Also Available)
• Current Draw:                    8amps
• Machine weight:                250kg
• Size:                                      3m x 2.5m
• Noise:                                   65DB
• Measurement Time:         8 seconds Per Side

Comes With The Following

• 5 X Wheel Adapter Cones-  9cm, 13cm, 17cm, 22cm & 29 cm
• Rim Measuring Device
• Lead Weight Remover
• Cone Tightening Spanner
• Instruction Manual

CLICK ON ABOVE FOR USER MANUAL



OPERATIONAL VIDEO OF SIMILAR TRUCK WHEEL BALANCER
